30 50 100 200 500 1000 1500 tons galvanized assembly feed seed cereal grain storage steel silo

The hopper, rings and support steel are made of hot-dip galvanized steel sheet. All TSE Grain Silos in hot-dip galvanized hopper cone for grain storage are designed in accordance D-4097 or ASTM D-3299 standards for elevated cone heads. According to the stored grain products and storing situations, the hopper or cone angles are commonly designed at 45º and 60º. The structure of hopper silo depends on the type of products to be stored. In generally, free flowing products pellet products like corn, wheat, soybean and feed pellets require the hopper bottom silo with a 45° angle while powder or other material which is hard to flow fits 60° cone bottom silo storage.

CONTACT NOW down load to pdf

Details

Tags

product description

Read More About automatic chicken scalder

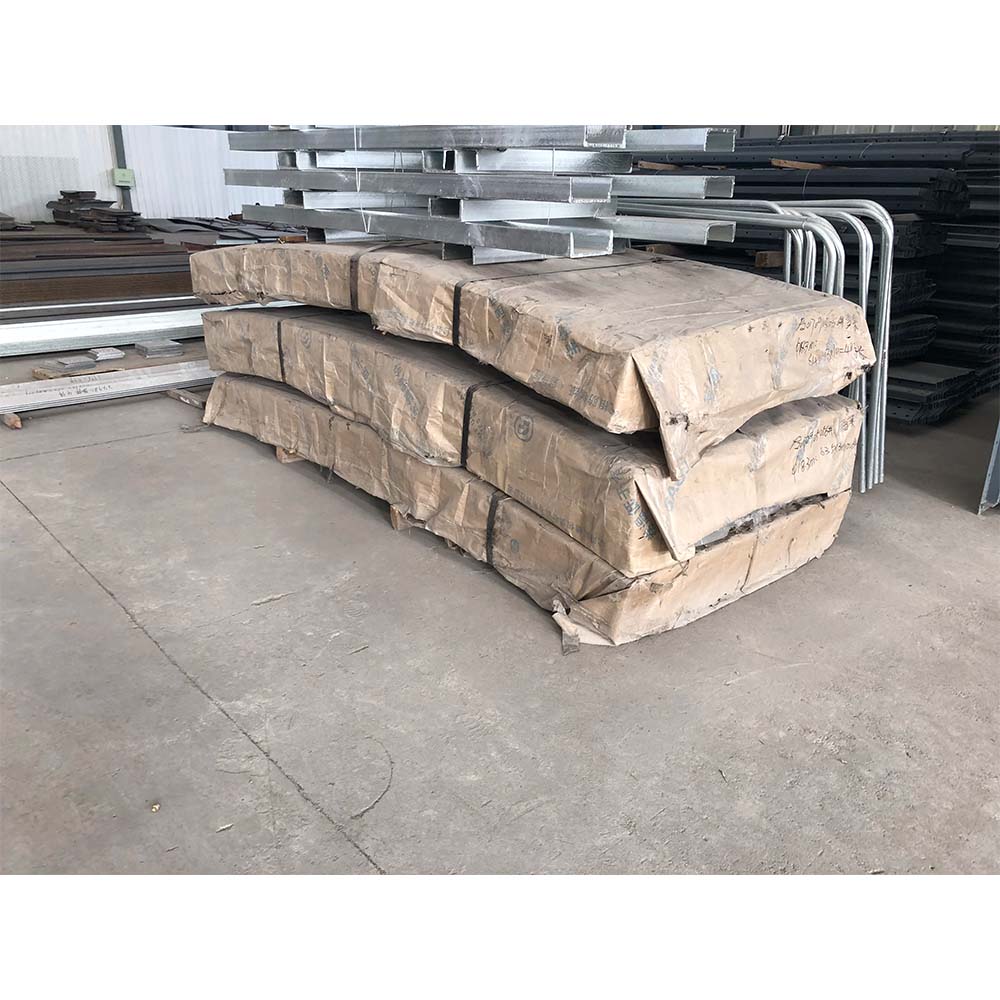

*Assembly, easy to ship and save freight.
*Vertical steel silo can save land space.
*Hot-dip galvanized plates (275g/m2-600g/m2), very WATERPROOF & RUST-PROOF.
*Hopper bottom has low cost price.
*Silos can store grain safely and save labor cost and space.
Scientifically speaking, the silo capacity should be measured with volume (m3).
Even in the same silo, the storage tons will be different for different grains with different densities.
The following table is calculated based on a grain density of 0.75kg/m3, and surely TSE customizes silo systems unique for you.

Product parameters

Read More About poultry scalder machine

Model	Volume	Eave Height(m)	Total Height(M)	Weight(Ton)
TCZK05509	272	13.73	15.16	9
TCZK06410	411	15.3	16.95	12
TCZK07310	550	14.64	16.5	14.5
TCZK08210	708	16.22	18.29	16.18
TCZK09011	960	17.79	20.07	25.5
TCZK10013	1360	20.47	22.97	30.766
TCZK11012	1536	19.79	22.5	35.5

products information

Read More About chicken feet skin peeling machine

what is silo？

Galvanized steel silos(also called grain storage bins, grain bins) are the steel silos with a cone bottom.Assembly galvanized grain steel silos are erected on the supporting structure to make the delicate products unloading easily through gravity. Grain silos have a smooth wall hopper transition with no steps or flanges to offer the cleanest product discharge from the silo. The stored products inside the silo are isolated from the ground, thereby preventing humidity and allowing the interconnection of silos through tapes, facilitating perfect extraction or dosage.
The hopper, rings and support steel are made of hot-dip galvanized steel sheet. All TSE Grain Silos in hot-dip galvanized hopper cone for grain storage are designed in accordance D-4097 or ASTM D-3299 standards for elevated cone heads. According to the stored grain products and storing situations, the hopper or cone angles are commonly designed at 45º and 60º. The structure of hopper silo depends on the type of products to be stored. In generally, free flowing products pellet products like corn, wheat, soybean and feed pellets require the hopper bottom silo with a 45° angle while powder or other material which is hard to flow fits 60° cone bottom silo storage.

Application of silo

Assembly galvanized Silos are widely applied for the storage of grains,wood pellet ,granular material, etc and feed pellets for animal, poultry and fish that require special storage conditions. If for grain or feed storage,they can also provide temporary storage of wet grain as part of a grain drying plant and other buffer bin applications in silo plants. Galvanized Grain steel hopper bottom Silos are widely used in poultry farm, rice mill, flour mill, soybean-oil mill, animal feed mill plant and brewery plant.

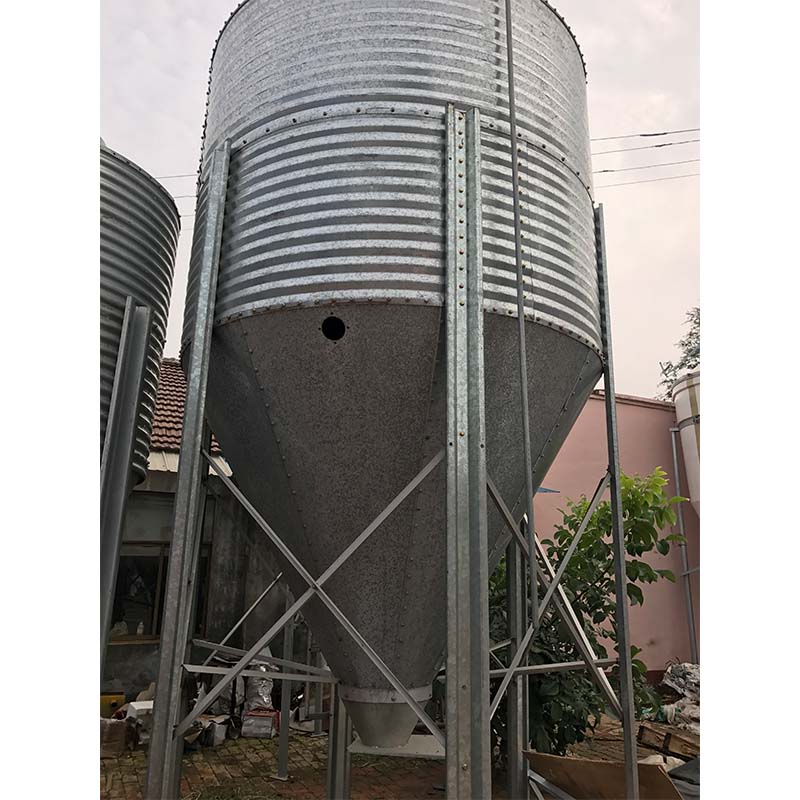

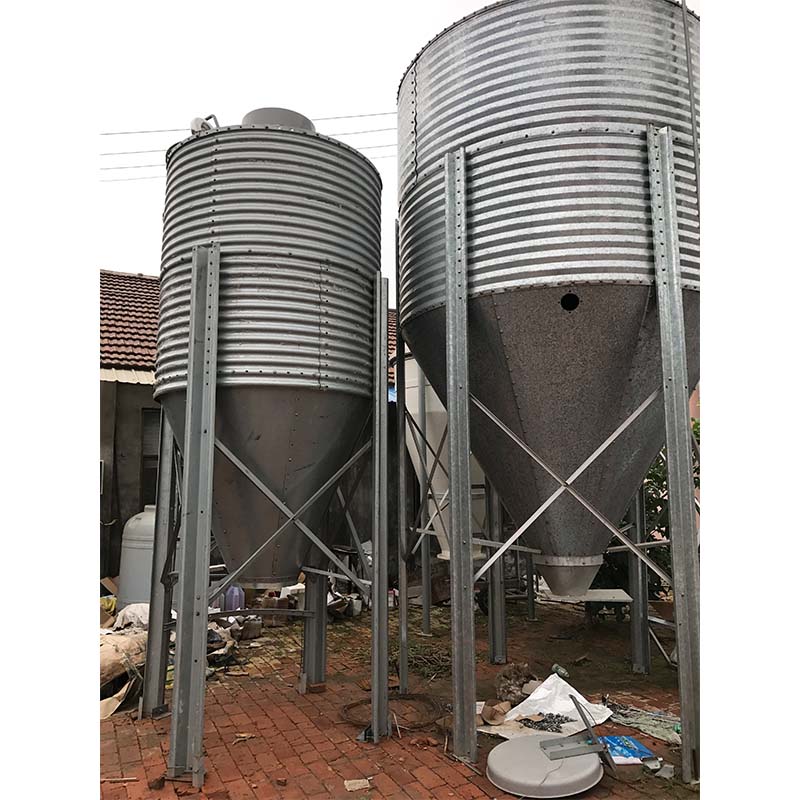

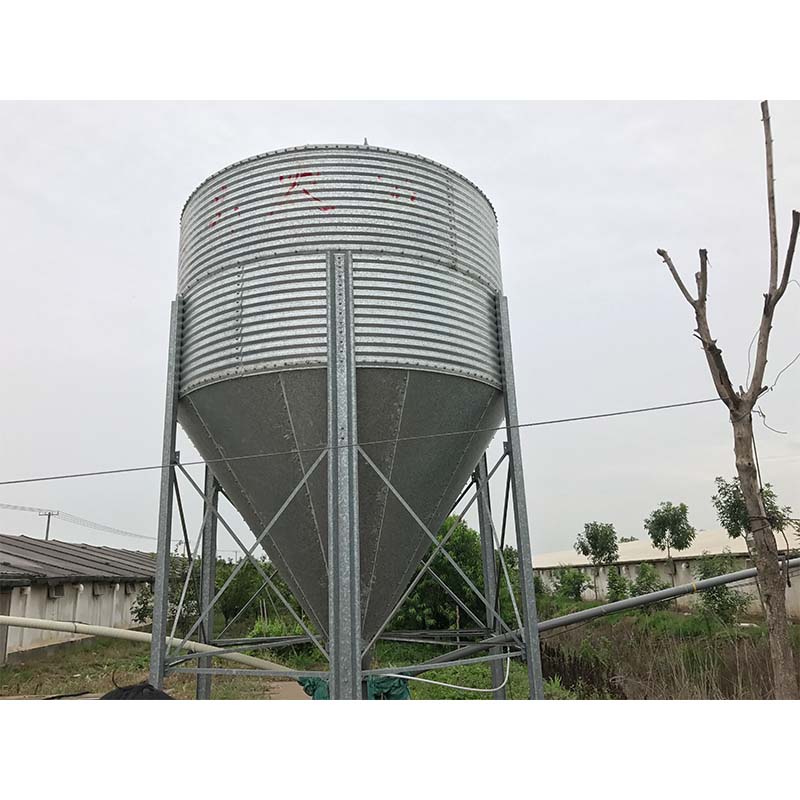

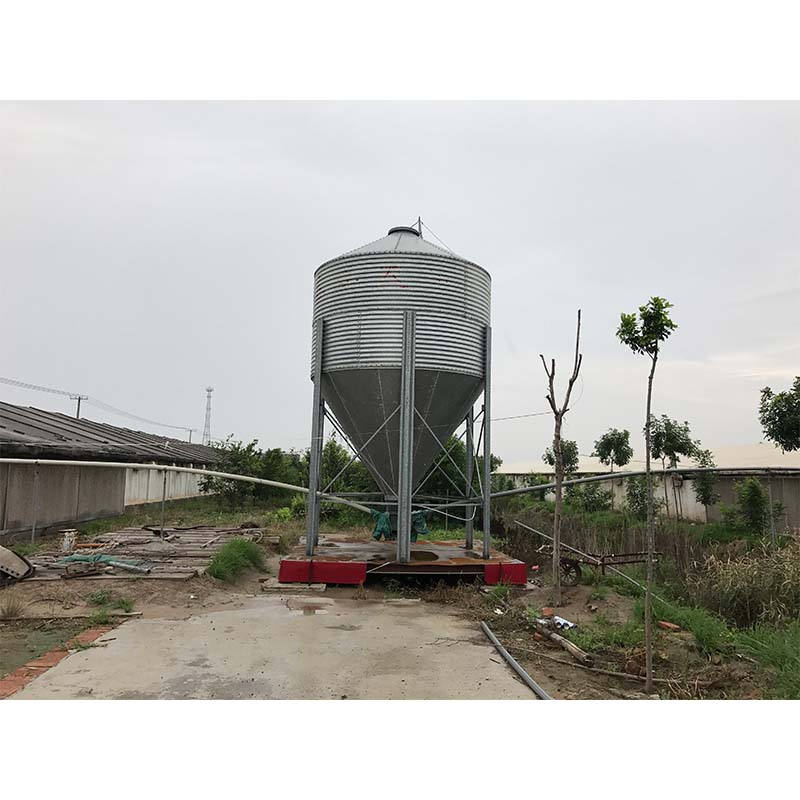

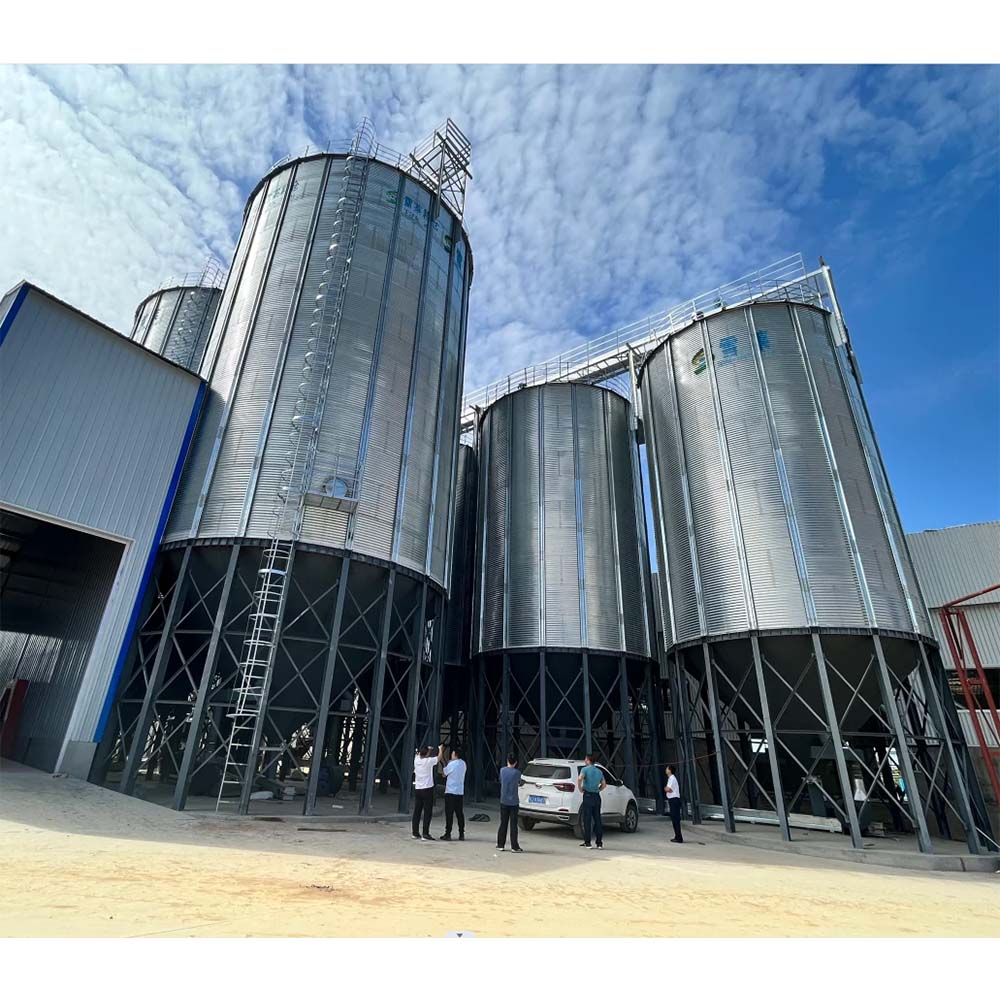

picture display
